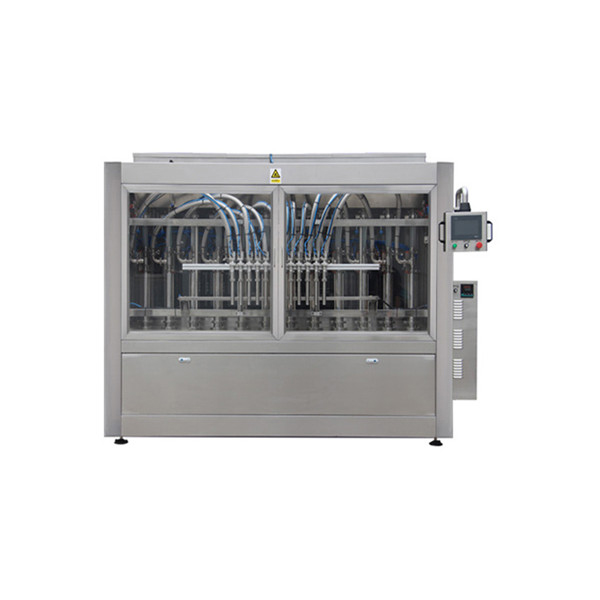

स्वचालित स्नेहक ईन्जिन तेल भर्न लाइन

This type machine is used for 4kg -30 kg liquid filling . It can finish a series of operations automatically, such as bottle inlet, weight filling, and bottle outlet. Especially for SL, edible oil lubrication. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.

1. This machine adopts PLC, touch screen control panel, convenient to adjust.

2. Each filling head has the weigh and feedback system. Each filling head can be regulated.

3. Photoelectric sensor, approximate switch and other electric elements are the international famous brand. No container no filling. The main host can trigger the alarm if there is any container blocked.

4. Submerged filling makes it possible to reduce form. It is suitable for various kinds of filling products.

5. The whole machine meets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapts to various kinds of working places.

स्वचालित स्नेहक ईन्जिन तेल भर्न लाइन

प्रकारSuitable bottlesक्षमतामेशिन आकारशक्तिबिजुली आपूर्तिPrecise
2 Headslength:160-3600mmwidth:100-300mm
neck diameter:≥Φ40mm
(can be customized)
30kg:200BPH2000*1700*2300mm२ किलोवाटAC220/380V


≤ ± ०.%%
4 Heads30kg:350BPH2500*1700*2300mm२ किलोवाट
6 टाउको30kg:520BPH3500*1700*2300mm२ किलोवाट
8 Heads30kg:600BPH4500*1700*2300mm२.०० किलोवाट


With pressure protection system, if the bottle is misaligned, the filling nozzle will rise after falling to a certain height


High quality filling valve, high filling accuracy, quick action

पाइपहरूको बिभिन्न विकल्पहरू:

ग्राहकको बिभिन्न छनौट अनुसार, ग्राहकलाई भेट्न पाइपका बिभिन्न सामग्रीहरू प्रयोग गर्न सकिन्छ
variety of different liquid safety filling.

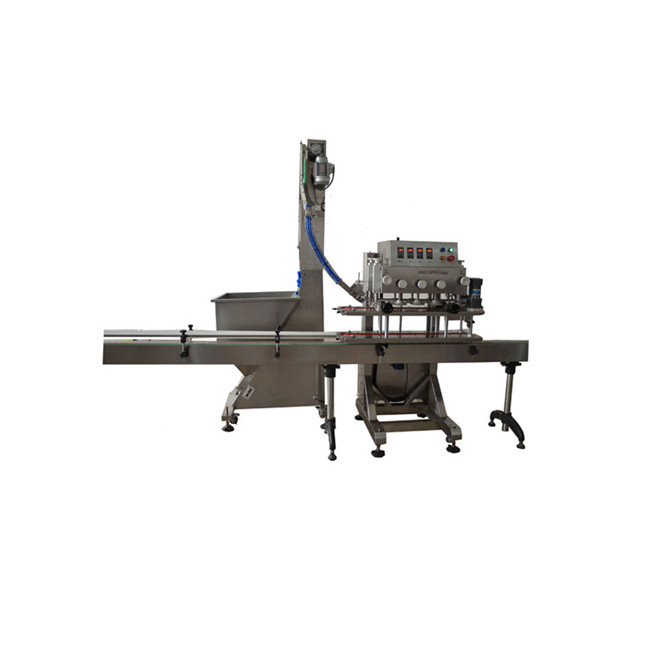

Automatic Capping Machine:

The machine adopts linear bottle feeding, PLC program control, double cylinder bottle positioning, can clear up and drop the cap automatically. Single-head machine in the double action lifting cylinder to grasp the cover firstly, then screw cap. The screw cap adopts the air expansion type catch cap, and is equipped with clutch device, the screw cap will not damage the bottle cap, the machine is suitable for the screw cap of the barrel with large diameter.

Automatic 6 Wheels Linear Trigger Capping Machine 3

वायु स्रोत0.6-0.8Mpa
शक्ति2.5kw AC220/380v;50/60 HZ


Servo motor is used to control the torque of the rotary capping head, It won't damage the bottle and the caps.

The action of grasping the cap is completed by the air cylinder.


According to the special requirements of customers, the cap lifting machine can be replaced with a cap unscrambler and conveyor belt. Much more easier to adjust when change the caps and bottles.


Belt type conveyor for the caps,the speed and stability of cap conveyor are increased, and won't occurs caps missing


On the belt conveyor, the no-aluminum foil cap remove device can be installed to remove the cover without aluminum foil.

Automatic Double-side Labeling Machine:

This machine id widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other industries. It is single
and double side labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer
(PLC) easy operating.

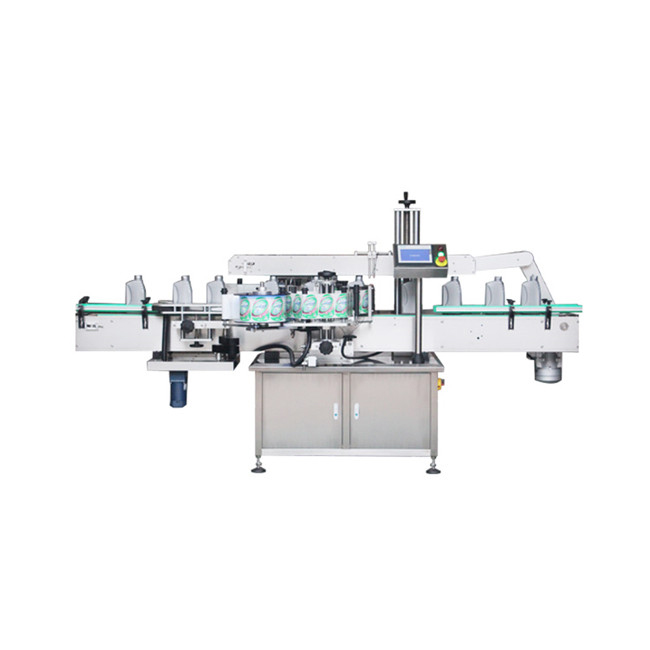

Automatic Double Sided Labeling Machine

Machine introduction:

1. Adopt mature PLC control technology, make the machine stable and high-speed. Can be suitable or square /oval flat bottles at the same time.

2. Adopt touch screen control system, simple, practical and efficient operation.


Adopt high quality wheel to leave some space between the bottles, so as to ensure that the labels will not be missed. The rotary speed of the sponge wheel can be adjusted to adjust space between the two bottles.


The parts of the machine that store labels and collect label paper are designed to be adjustable to accommodate a wide variety of labels.


Adopt photoelectric equipment imported from Germany, and high quality servo motor, the labeling accuracy is greatly improved.


१. स्थापना, डिबग
After equipment reached the workshop of cust
omer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

२. प्रशिक्षण
हाम्रो कम्पनीले ग्राहकलाई प्रविधि प्रशिक्षण प्रदान गर्दछ। प्रशिक्षण को सामग्री संरचना को उपकरण र रखरखाव, उपकरण को नियन्त्रण र अपरेशन हो। अनुभवी टेक्निशियन मार्गदर्शन र प्रशिक्षण रूपरेखा स्थापना गर्दछ। प्रशिक्षण पछि, खरिदकर्ताको टेक्निशियनले अपरेशन र मर्मतसम्भार गर्न सक्दछ, प्रक्रिया समायोजित गर्न सक्दछ र विभिन्न असफलताहरूको उपचार गर्न सक्दछ।

Quality. गुणस्तर ग्यारेन्टी
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.

After. बिक्री पछि
जाँच गरेपछि, हामी १२ महिना गुणस्तर ग्यारेन्टीको रूपमा प्रस्ताव गर्दछौं, नि: शुल्क प्रस्ताव लगाउने भागहरू र अन्य भागहरू कम मूल्यमा प्रस्ताव गर्दछौं। गुणस्तरको ग्यारेन्टीमा, खरिदकर्ताहरूको प्राविधिकले विक्रेताको माग अनुसार उपकरणहरू सञ्चालन र मर्मत गर्नुपर्छ, केही असफलताहरू डिबग गर्नुहोस्। यदि तपाईं समस्याहरू समाधान गर्न सक्नुहुन्न भने हामी तपाईंलाई फोनमार्फत निर्देशन दिन्छौं; यदि समस्याहरू अझै समाधान हुन सकेन भने, हामी तपाईंको कारखानामा टेक्नीशियन व्यवस्था गर्नेछौं समस्याहरू समाधान गर्न। टेक्निसियन व्यवस्थाको लागत तपाईं टेक्निशियनको लागत उपचार विधि देख्न सक्नुहुनेछ।

गुणवत्ता ग्यारेन्टी पछि, हामी प्रविधि समर्थन र बिक्री सेवा पछि प्रस्ताव गर्दछौं। उपयुक्त मूल्यमा लगाउने पार्ट्स र अन्य स्पेयर पार्ट्स प्रस्ताव गर्नुहोस्; गुणस्तरको ग्यारेन्टी पछि, खरीददारहरूको प्राविधिकले विक्रेताको माग अनुसार उपकरणहरू सञ्चालन र मर्मत गर्नुपर्छ, केही असफलताहरू डिबग गर्नुहोस्। यदि तपाईं समस्याहरू समाधान गर्न सक्नुहुन्न भने हामी तपाईंलाई फोनमार्फत निर्देशन दिन्छौं; यदि समस्याहरू अझै समाधान हुन सकेन भने, हामी तपाईंको कारखानामा टेक्नीशियन व्यवस्था गर्नेछौं समस्याहरू समाधान गर्न।
