स्वचालित डिशवाशिंग तरल डिओडोरिजर स्प्रे भरिने मेसिन
This machine is mainly used for perfume, disinfectant, repellent liquid, jelly water, rhinitis spirit, athlete's foot doctor, burn spray, watermelon frost sprays and other products of automatic filling and capping.
1. Workflow: bottle unscrambling --bottle washing (optional)?--filling --adding sprayer --adding cap (optional) --capping -- labeling --ribbon printing/ink jet printing (optional).
2. PLC controlsystem, color touch screen display.
3. This machine has function of no bottle no filling (only peristaltic pump) / no adding pump/ no adding outer cap (if has outer cap).

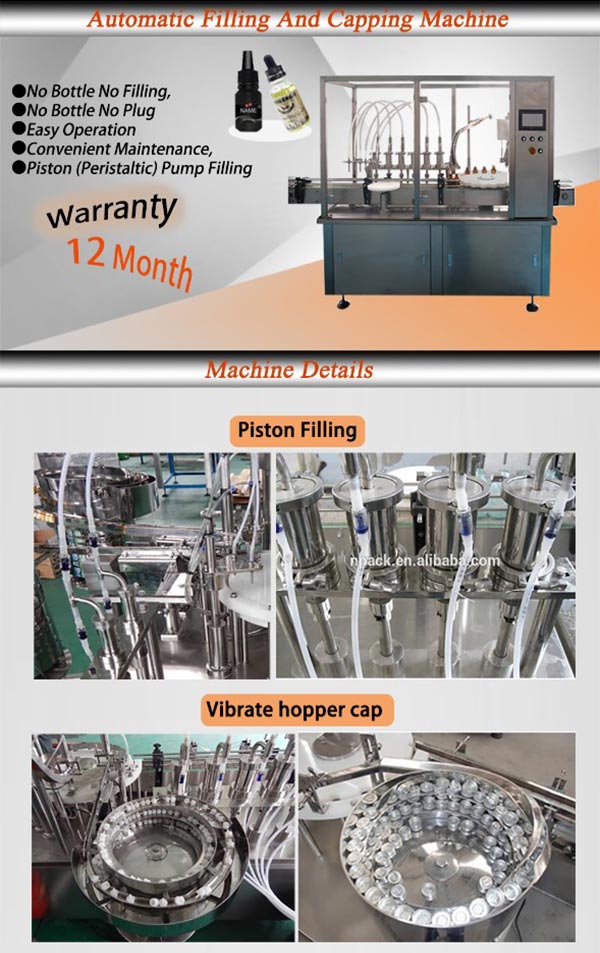

4. Stainless steel piston pump quantitative filling, pneumatic adding cap, lifting screw capping. Has advantages of accurate filling measurement, smooth screw capping, and simple operation.

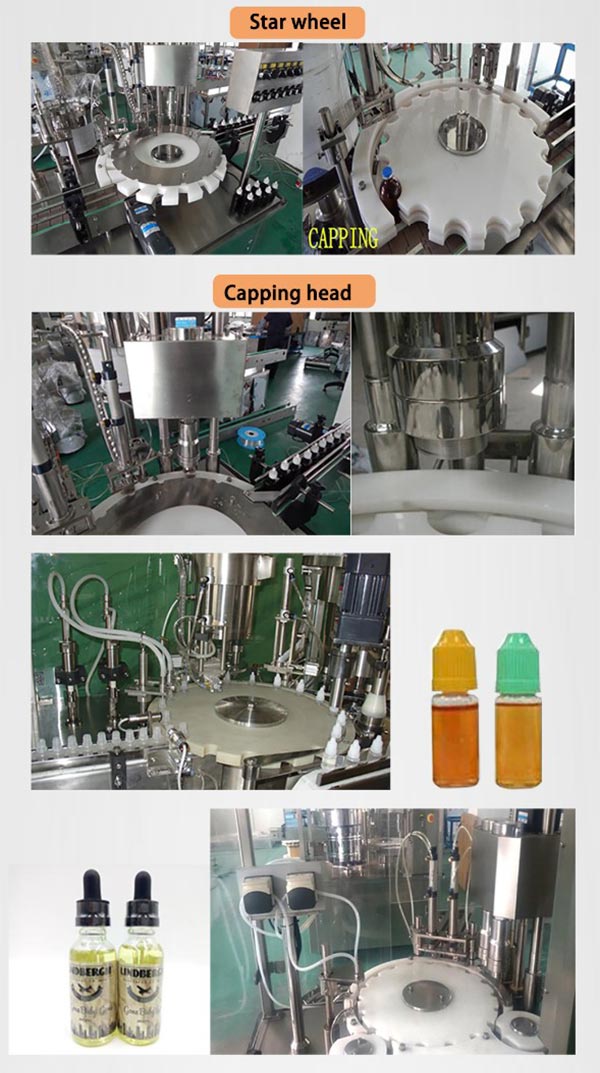

5. Cappositioning device, makessure the sprayer plastic pipe which too long or curved could go to bottle neck accurately.
6. Filling nozzlesdive into bottlesto fill and riseslowly to prevent foaming. Catch type flexible screw lid/head, adjustable tightness.
Main. मुख्य विद्युतीय तत्त्वहरूले विदेशी प्रसिद्ध ब्रान्ड अपनाउँछन्।
8. Machine shellis made of 304 stainless steel, machine meets GMP requirements.
| वारेन्टी | 1 YEAR |
| After-sales Service Provided | Online support |
| प्रमाणपत्र | CE Certificate |
| तौल | 500kg |
| Dimension(L*W*H) | 2100*1600*200 |
| Brand Name | VKPAK |
| Place of Origin | China (Mainland) |
| China (Mainland) | शंघाई |
| भोल्टेज | 220V / 50HZ |
| Driven Type | इलेक्ट्रिक |
| Automatic Grade | स्वचालित |
| Packaging Material | Metal, Paper, Plastic, Wood,Glass |
| Packaging Type | Barrel, Bottles, Cans, Case, Cartons |
| अनुप्रयोग | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
| सर्त | नयाँ |
| After-sales Service Provided | ईन्जिनियरहरू विदेशमा सेवा मेसिनरीमा उपलब्ध छन् |
| उत्पाद नाम | perfume filling machine |
| क्षमता | 10-35bottles/min |
| भोल्युम भोलि | 20-200ML |
| Filling accurancy | ≤ ± १% |
| भरिएको हेड नम्बर | 2 |
| नेट वजन | 450kg |
| Adding plud/dropper head | 1 |
| दर दर | ≥98% |
The machine works by one principle;
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper. The volume of the product that is sucked into the cylinder is the precise volume that will be dispensed into the container. All these procedure is highly controlled by servo motor to assure 100% working stability.
पिस्टन भरने मेसिनको क्षमताले के निर्धारण गर्यो?
In general, number of filling nozzles is the key to determine the capacity of your filling machine, which has directly influence on filling capacity by hour in actual production. Beside filling nozzles, the size of mouth of filling head is also a key to affect filling speed. And other details like bottle size, product viscosity, neck mouth, conveyor speed, etc. VKPAK'S engineer will make all the details best before shipping to client's site.
टच स्क्रिन
Our touch screen is in two languages by default, Chinese and English, but we can also set it if the customer requires other languages
Our machines can be made into a complete production line
From bottle feeder +filling + capping + labeling + bottle collecting
We also have heating and stirring tank, air compressor, and other related products.
Bottle feeder .
This machine is mainly used for round or square shape bottles automatic sorting and arrangement. Put the bottles on the rotating disc manually, then it will set the bottles into the conveyor in order Machine shell and part contacting product are made of stainless steel, meets GMP standard.
अनुप्रयोग:
The machine is mainly applied to 50 ml or less electronic cigarette oil, eye drops, nail polish, eye shadow, essential oils and other products of automatic filling, plug and screw cap.
Spray filling production line
This machine is mainly used for automatic filling of perfume, disinfectant, toilet water, gel water and other spray products
Liquid filling production line
This machine is mainly used for automatic filling of perfume, disinfectant, toilet water, gel water and other spray products
Cartoning machine
It's suitable for e-cigarette oil bottle, eye drops bottle, blister forming capsule and tablet, We can customize the machines exactly according to your bottles and your requirements!
FAQ
Q: Are you a factory or trading company?
A: VKPAK is a factory who has 12 years experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 12 years, and now we have our own brands and own designed machines for sale!
Q: How long you need to ship the machines after order?
A: All machines can be ready and shipped in 15 or 30 days after order!
Q: What's the payment you prefer?
A: We accept TT/Western union/Cash/LC
Q: Why should I choose your packing and filling machine ?
A: We have been specialized in filling and packing machine for more then ten years,and until now have exported machines to more than 100 countries
